- Device Dimensions: 134 mm × 74 mm × 17 mm ( 5.28" × 2.91" × 0.67")
- Weight: 250g (unit & battery in total)
- Display: 4.46 inches color LCD touchscreen
- Screen Resolution: 480 × 854 pixels
12-Lead Pocket ECG Machine
Diagnostic ECG Machine in Your Pocket
Pocket sized 12-lead ECG machine allows data transfer via email, designed for on-site medical delivery.
- See all reviews
12-Lead Pocket ECG Machine
Diagnostic ECG Machine in Your Pocket
Pocket sized 12-lead ECG machine allows data transfer via email, designed for on-site medical delivery.
- See all reviews
Portable ECG Machine
Light in weight, small in size, easy to carry
Adults & Pediatrics
Support ECG tests and analysis for adults & children
Automatic Interpretation
Advisory rhythm analysis based on authorized databases
Easy Patient Management
ECG reports in PDF, BMP, DAT; easily import to hospital management system
Transmit ECG Data Wirelessly
Support wireless transmission of ECG data via email, Wi-Fi network and USB drive.
All Day Long Battery Life
Continuously working for 24 hours after fully charged. Ideal for long-hour shifts and patient monitoring
10,000+ Files Stored
Store more than 10,000 ECG cases. This pocket ECG device can save 10 times larger than traditional ECG machines.
Easy to Operate
Accurately identify the electrode with poor contact and give instructions on the color touchscreen
Phone Sized 12-Lead ECG Machine
6/12 Leads | Glasgow 12-Lead ECG Analysis Algorithm
The size of 134mm × 74mm × 17mm (5.3"×4.4"×0.7") is small enough to fit into your pocket. With its light weight of 250g, this 12-lead ECG machine can be carried anywhere like a smartphone. It supports synchronous 12-lead ECG acquisition and display of 6-lead/12-lead waveform, as well as heart rate detection.
ECG Tests in the Palm of Your Hand
A must-have for clinicians, healthcare facilities, EMS (Emergency Medical Services) and especially on-site medical delivery services. Perform cardiac tests in the palm of hand immediately and get the result rapidly to make treatment decisions.
Perform ECG Tests Anytime, Anywhere
Physicians can conveniently carry this small ECG device on the go. This portable ECG machine enables effective diagnosis of cardiac conditions anywhere, anytime.
Portable ECG Machine for All Kinds of Medical Services
Home Caregivers, Family Doctors & Cardiologists
This portable ECG machine provides a mobile solution to caregivers and traveling physicians, meeting their demands for mobile ECG exams and interpretation.
Clinics, Hospitals & Health Centers
ECG reports transmission via mobiles is helpful with teleconsultation whether in the ambulance, between the onsite clinicians and the off-site cardiologists or among hospitals, clinics, health centers.
Prehospital Emergent Services
Get rid of large, heavy emergency devices. This mini ECG unit allows paramedics to carry it in the pocket for pre-hospital care in ambulances. Saving space, time and energy during intensive shifts.
ECG Tests in the Palm of Your Hand
A must-have for clinicians, healthcare facilities, EMS (Emergency Medical Services) and especially on-site medical delivery services. Perform cardiac tests in the palm of hand immediately and get the result rapidly to make treatment decisions.
Excellent Performance in Cardiac Monitoring
Support auto mode and R-R mode
Support anti-drifting system (ADS) and electromyograph (EMG) interference
Freeze the ECG waveform on the screen
Support automatic pacing detection and marking (pacemaker detection)
Automatic ECG Interpretation
The University of Glasgow 12-Lead ECG Analysis Algorithm (GA) is integrated into the machine for ECG data analysis. As one of the top three resting ECG interpretive algorithms in the world, the GA is highly effective in interpreting STEMI (ST-Segment Elevation Myocardial infarction), helps in QTC measurements facilitating assessment of cardiac risk, and offers short diagnostic reports for hospitals and detailed reports for primary care settings.
Edit Diagnosis on the Color TouchScreen
It shows key parameters to reveal full insights on heart rhythm. Cardiologists can easily edit the diagnosis with one tap on its touch screen. Decreasing prehospital cardiac catheterization laboratory (CCL) activations and unnecessary healthcare paperworks with great efficiency.
Access, View & Export Reports in Seconds
The pocket ECG provides thorough report with a wide range of statistics available, as well as inclusive data on all known arrhythmia kinds, and the advisory result for the right medical treatment.
Get Full Insight on Heart Rhythm
It provides clear and complete statistical summaries of Heart rate, P duration, PR interval, QRS duration, QT/QTC interval, P/QRS/T axis, and full set of measurements to create a complete picture of patients' heart rhythms.
Share ECG Data with Android Devices & Computers
Support wireless transmission of ECG data via WiFi and mobile networks. Also provide a USB Type-C dual-head flash drive to transfer files between Android devices and computers.
Print ECG Reports Wirelessly
1
Choose your patient's case.
In the file section, choose the report you want to print out.
2
Preview and export the ECG report.
Then you can preview the format and content of the ECG report. Tap export to get the digital file.
3
Save your report on the flash drive we provide.
We provide a USB type-c dual-head flash drive for your extra data storage and transmission.
4
Print and share the ECG report.
Print ECG reports through an external printer by USB drive and network connection.
Input Patient Information in Seconds
Input patient information by scanning the barcode on patient's wrist. Saving time on managing patient information digitally instead of handwriting on paperworks.
Input Patient Information in Seconds
Input patient information by scanning the barcode on patient's wrist. Saving time on managing patient information digitally instead of handwriting on paperworks.
On-screen ECG Placement Guide
Electrode connection diagram and real-time connection status are shown on the display. Accurately identify poor electrode connections and provide related instructions.

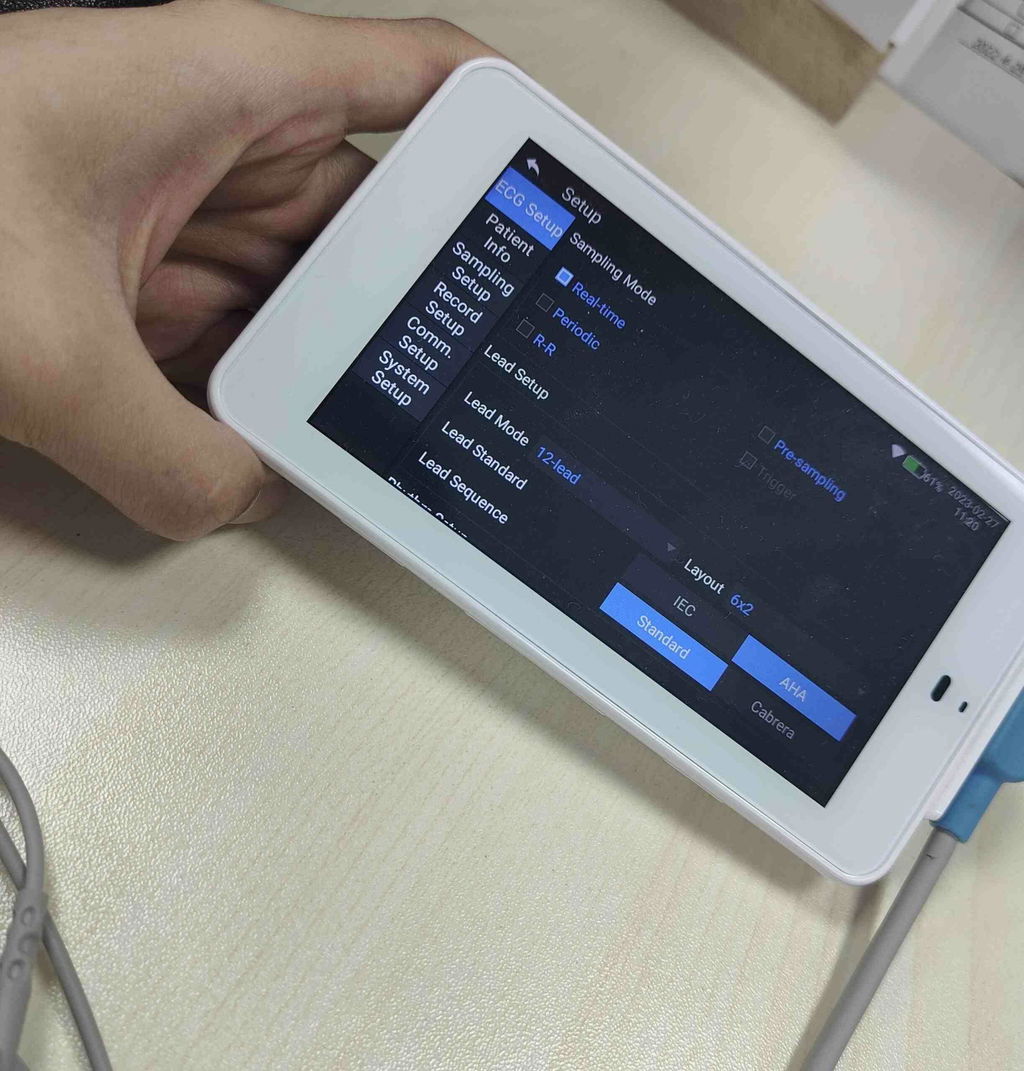

5 ECG Sampling Modes
Provide 5 sampling modes: pre-sampling, real-time sampling, periodic sampling, trigger sampling and R-R.
Export ECG Reports in Multiple Formats
Output files in multiple formats, such as ECG report, PDF, BMP, DAT, easily connect to your hospital management system.
Find the right ECG
Weight
0.25kg (0.55lbs),
Phone-size, lighter
0.8kg (1.76lbs),
Tablet size
Size
134mm×74mm×17mm (5.28"×2.91"×0.67")
197mm×112.4mm×26.1mm (7.8''x4.4''x1.0'')
Leads
6 leads, 12 leads
6 leads, 9 leads & 12 leads
Display
4.46 inches
7 inches
Screen Resolution
480 × 854 pixels
1024 x 600 pixels
Sampling Rate
2,000 points/s
32,000 points/s
Battery
24 hours, all day performance
10 hours
Privacy
Anyone who uses the machine
Log in with user name and password
Analysis
Editable, but without signature
Free to edit and applicable signature
Accessories in the Package
Included in the package, we provide all the accessories you need to operate the unit.
1 set of patient ECG cable
Disposable ECG electrodes (20 pcs)
USB Type-C dual-head flash drive
Type-C charging cable
In case You Need Extra ECG Electrodes
Tech Specifications
Physical Details
Tech Specifications
- Heart Rate Calculation: Peak-peak detection
- Heart Rate Range: 30 bpm~300 bpm
- Accuracy: ±1bpm
- Leads: 6-lead / 12-lead synchronous acquisition and analysis
- A/D Conversion: 24 bits
- Sampling Rate: 2000 samples/sec
- Common Mode Rejection Ratio (CMRR): ≥100dB (AC filter on)
Battery
- Rechargeable: Rechargeable Lithium Battery
- Rated Voltage: 3.8V
- Rated Capacity: 6000mAh
- Battery Life: 24-hour continuous operating
- Charging Time: 8 hours
What's in the Box
- Main Tablet Unit
- Detailed User Manual
- Patient Cable (1 set)
- Adult Disaposable Electrodes (20 pcs)
- USB Type-C Dual-Head Flash Drive
- Type-C Cable Charger
Tech Specifications
Physical Details
- Device Dimensions: 134 mm × 74 mm × 17 mm ( 5.28" × 2.91" × 0.67")
- Weight: 250g (unit & battery in total)
- Display: 4.46 inches color LCD touchscreen
- Screen Resolution: 480 × 854 pixels
Tech Specifications
- Heart Rate Calculation: Peak-peak detection
- Heart Rate Range: 30 bpm~300 bpm
- Accuracy: ±1bpm
- Leads: 6-lead / 12-lead synchronous acquisition and analysis
- A/D Conversion: 24 bits
- Sampling Rate: 2000 samples/sec
- Common Mode Rejection Ratio (CMRR): ≥100dB (AC filter on)
Battery
- Rechargeable: Rechargeable Lithium Battery
- Rated Voltage: 3.8V
- Rated Capacity: 6000mAh
- Battery Life: 24-hour continuous operating
- Charging Time: 8 hours
What's in the Box
- Main Tablet Unit
- Detailed User Manual
- Patient Cable (1 set)
- Adult Disaposable Electrodes (20 pcs)
- USB Type-C Dual-Head Flash Drive
- Type-C Cable Charger
